LED Replacement Lamps
BACK LED Down Lighting
G24 5W Down Light Bulb

DaylightWarm White
Eco-$mart Price: Quoted


Eco-$mart Price: Quoted



  • Aluminum heat sink.
  • No UV or RF interference.
  • Patented heat sink and optical diffuser.
  • Longer life than incandescent & fluorescents.
  • No mercury.
  • No ballast required.
  • Wide voltage and constant current design.
  • Solid state, high shock & vibration resistant.
  • No noise, no flickering.
  • 66%+ savings in energy consumption.
  • In accordance with CE, UL and FCC testing standards.

Applications:  The G24 5W Down Light has been designed to retrofit existing 26W PL installations, thereby reducing maintenance and energy expenditures - and as an energy saving light source for new fixtures and installations.

 Retail Display    Signage    Hospitality    Residential lighting    Walk and Hall Lighting

Specifications: Detailed Specifications PDF
Wattage: 5W
Lighting angle: 160
Lumens: 360¹ / 420²
CRI: 80
Base: G24
Power factor: 0.9
LED: 24pcs 5050 SMD
Replaces: 26W PL
Net Weight: 0.15kg/pcs
Package: 81pcs/Carton
G.W: 21kg/Carton
Input Voltage: 110-277V 50Hz/60Hz
Color Temperature:
  ¹Warm White: 3000-3500K
  ²Daylight White: 5800-6300K
LED Type: 0.2W SMD 5050
Working Temperature: -40°~+55°
IP rating: IP45
Working Life: > 50,000 Hours

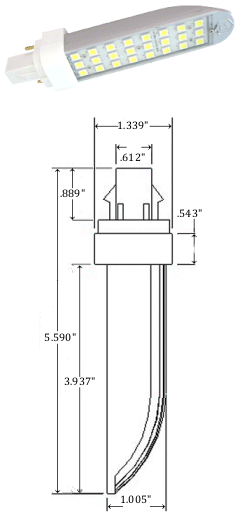

Size: 5.590" x 1.005" x 1.005"

G24 Down Light
