SUN FROST Refrigerators & Freezers

Available Models

EFFICIENT DEFROST  ~ SUPERIOR STORAGE  ~ COOL SUMMER KITCHEN  ~ RELIABLE  ~ FEWER SOLAR PANELS

The SUN FROST refrigerator typically reduces refrigerator energy consumption by a factor of five. The accompanying cost of the solar power system is similarly reduced. The SUN FROST RF16 typically consumes 15 KWH per month. By contrast, the average refrigerator in a home typically consumes about 90 KWH per month.

Model	Description	Daily Energy Use		Dimensions¹			Shipping²
		at 70° F / 21° C 12VDC / 110VAC	at 90° F / 32° C 12VDC / 110VAC	Height inches	Width inches	Depth inches	WGT LBS	VOL CF
RF19*	Refrigerator & Freezer	62 AH / .77 KWH	82 AH / 1.02 KWH	66	34.5	27.75	320	46
R19	Refrigerator Only	28 AH / .33 KWH	47 AH / .56 KWH	66	34.5	27.75	310	46
F19	Freezer Only	100 AH / 1.25 KWH	130 AH / 1.63 KWH	66	34.5	27.75	320	46
RF16	Refrigerator- Freezer	40 AH / .48 KWH	58 AH / .70 KWH	62.5	34.5	27.75	300	44
RF12	Refrigerator- Freezer	24 AH / .29 KWH	39 AH / .47 KWH	49.5	34.5	27.75	230	36
R10	Refrigerator Only	13 AH / .17 KWH	23 AH / .28 KWH	43.5	34.5	27.75	215	32
F10	Freezer Only	55 AH / .69 KWH	70 AH / .88 KWH	43.5	34.5	27.75	215	32
RF4	Refrigerator w/ ice tray	12 AH / .14 KWH	18 AH / .21 KWH	31.5	34.5	27.75	160	23
R4	Refrigerator Only	8 AH / .10 KWH	12 AH / .14 KWH	31.5	34.5	27.75	160	23
F4	Freezer Only	28 AH / .35 KWH	36 AH / .45 KWH	31.5	34.5	27.75	160	23
RFVB	Vaccine Storage Unit	14 AH / .17 KWH	23 AH / .28 KWH	31.5	34.5	27.75	160	23
¹see clearances below.						²Export add 40 lbs.

Voltage: All models are available in 12 volt DC, 24 volt DC, 110AC, or 220AC. Listed energy consumptions are for 12 volt units; 24 volt units use half the listed Amp Hours (AH). Kilowatt Hours (KWH) are listed for AC units.

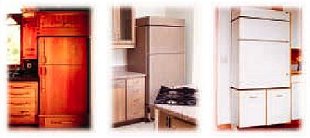

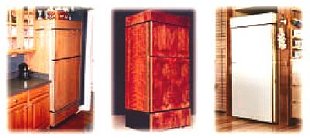

Colors: A wide variety of custom laminates and wood veneers are available. Standard color is white.

Terms: Pre-payment required. Production will not begin on custom colors / wood veneers until full payment is received. hinge side for the door to open. All units require minimum 6" clearance above to allow for heat ventilatation.

Base Cabinets: Custom built with two side by side drawers. Available in 13" and 24" heights or 4" stand.

¹Clearance: The doors are mounted on a continuous piano hinge. It is important to allow an aditional 3.75" width on the hinge side for the door to open. All units require minimum 6" clearance above to allow for heat ventilatation.

Composter: Attractive Solid Oak Composter available.

*Model RF19: Choice of freezer on top or bottom
