Hybrid Building Shell

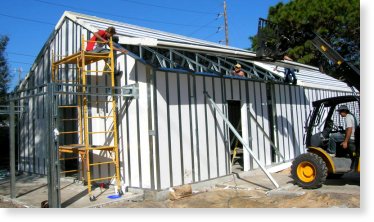

Panelized Steel Hybrid Building Shell is a complete building shell system including walls and wall coatings, roof, floor, interior framing and insulation - and optionally, windows, doors and roof cladding. The core of the system is an engineered, panelized, specially manufactured steel stud wall and roof and interior framing, rated to resist winds from 150 to 200mph (design dependent). In the field, the walls are clad with a Miami-Dade approved textured, colored concrete coating (other exteriors also available), the roof is clad with OSB (wood-oriented strand board), then the interior of the roof is sprayed with open cell water blown foam, providing a healthy, sealed attic and excellent air control. The wall panels have insulation installed in the factory, carrying an insulation value of R-32. The Panelized Steel Hybrid Building Shell installation crew does all the work of up to nine separate subcontractors, reducing time and cost to build. The Panelized Steel Hybrid Building Shell is suitable for residential or commercial buildings up to five stories.

The complete Panelized Steel Hybrid Building Shell for a 2500 square foot house can be built in as little as three days, by a single crew, eliminating delays between trades. Costs for Panelized Steel Hybrid Building Shell, which include engineered drawings, are competitive with standard construction methods. Yet, the Panelized Steel Hybrid Building Shell is truly a healthy, efficient, disaster resistant building envelope. And crews can install Eco-$mart’s Insulated Impact Windows, and a special, high wind resistance metal roofing product that looks like tile or shingles.

Panelized Steel Hybrid Building Shell can be supplied and installed throughout the United States. Each Panelized Steel Hybrid Building Shell plant is capable of producing over 100,000 square feet of panels per week. Where a project creates sufficient demand for Panelized Steel Hybrid Building Shell, a plant can even be located near to the project.

Item Number: BE-PSHBS Price: Quoted Quote Request

House Plans Cottage Series PDF Standard Features PDF Print This Page Help

Protect the Environment ~ Renewable Source ~ Recyclable Steel ~ Clean, Efficient Manufacturing ~ Reduced Wood use ~ No on site waste

Protect your Investment  ~ Earthquake: Higher strength to weight ratio, meets California Earthquake Codes.  ~ Fire: Will not burn. Will not promote fire spread. No noxious fumes. Maintains structural integrity.  ~ Insects: Termite proof material. Sealed pannelized construction inhibits invasion.  ~ Weather: Weather tight panellized construction, withstands winds from 150 to 200mph (design dependent).

Advantages of Panelized Steel Hybrid Building Shell Replaces six to nine trades with one subcontractor. (Replaces wall mason, poured beam contractor, interior framer, truss and floor system installer, insulation contractor, stucco contractor, exterior painter, optionally: window installer, roofing contractor) Much faster shell construction. At or below conventional construction costs. Truly "Green", healthy, efficient, disaster resistant structure. Complete shell is engineered to 150mph and up. Miami-Dade approved. Manufacturing tolerances below 1/32 of an inch. Offers a variety exterior options (concrete/stucco, AAC, siding) Residential and commercial pre-engineered designs available. Design build services available.

Contact Eco-$mart for Engineering & Design Services, Retrofits & Conversions, and Support for Architects and Builders.
